Shashvath Fabrication and Engineerings


  • Rotation speed of impeller: Max 1,500 RPM
  • Main motor: 10 HP
  • Vacuum pump: 3 HP
  • Power: 220V / 3PH
  • AC Frequency: 60Hz Consumption: Max 8KW
  • Air: 5 – 7 Kg/Cm2
  • Dimensions: 1,000W x 1,100D x 2,500H (mm)
  • Estimated weight: 450 KG

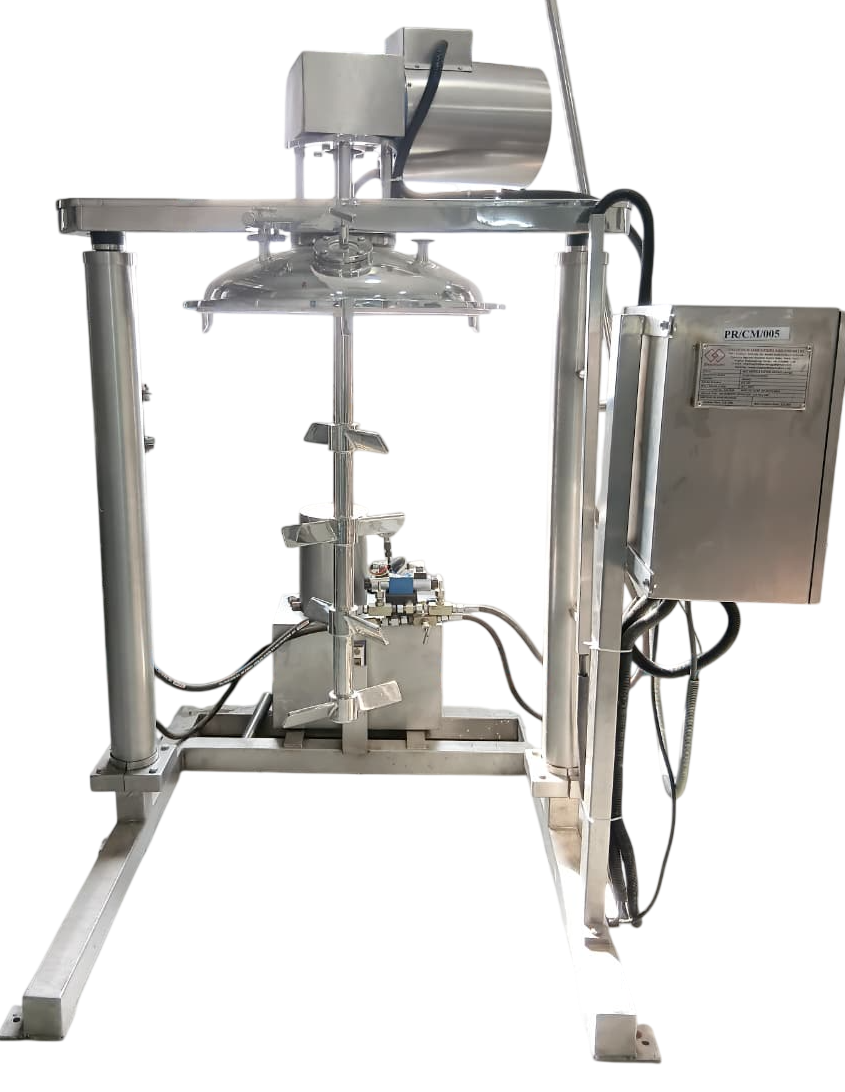

  • A specifically designed impeller is installed at the bottom of the drive shaft and inside a circular cowling.
  • Maximum impeller mixing speed of 1500 rpm.
  • The machine is designed to be floor anchored and wall mounted, using a compressed air-driven cylinder.
  • Insures a homogeneous blend.
  • Allows dispersing, mixing, homogenizing, and emulsifying while vacuum removes air within the product.
  • Takes up very little floor space.
  • The mixing head moves effortlessly up and down to the desired position when a gel transfer tank is moved into position.
