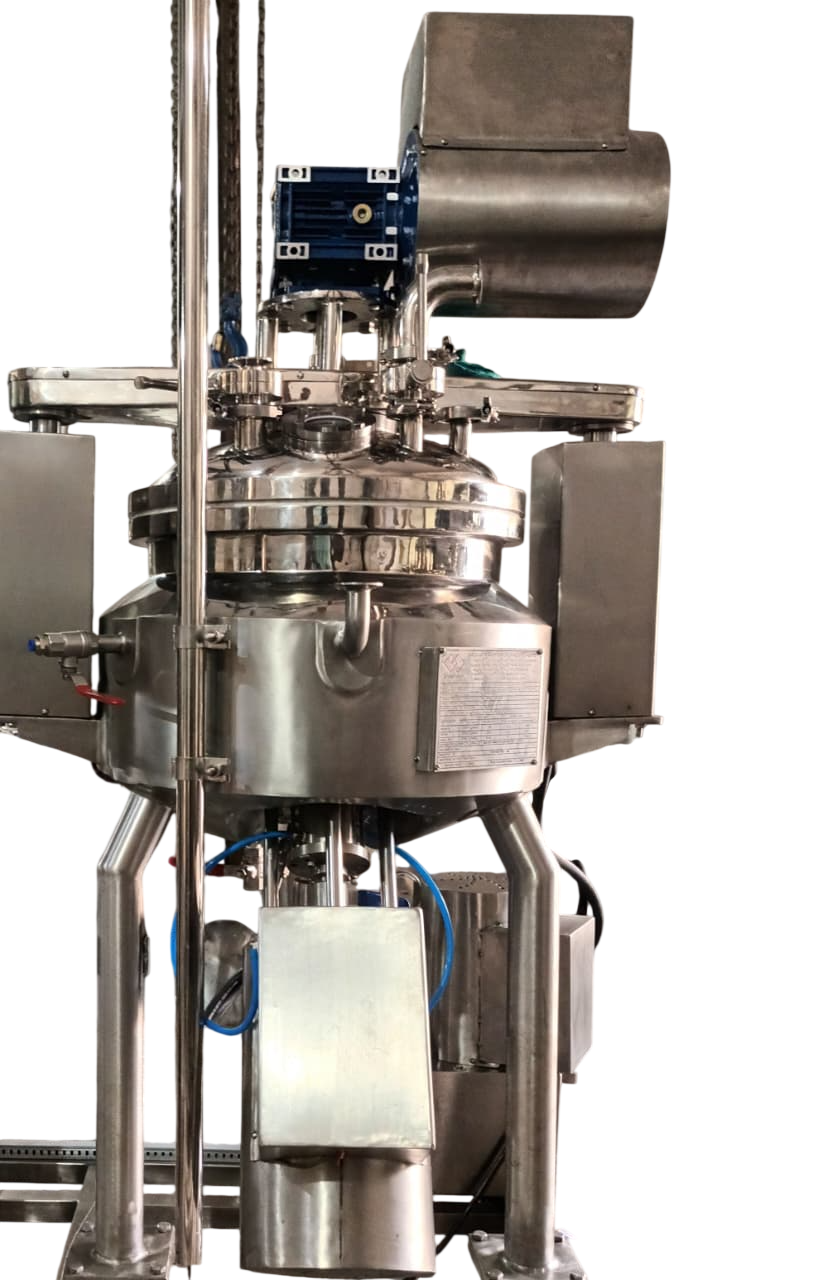

  • Homo Cum Vacuum Mixer


  • Material: SS 316, SS 304, SS 316L
  • Hydraulic lifting type
  • Dimension: 1,710(L) x 1,000(W) x 1,430(H)/2,130(Up)
  • Weight: Approximately 520 Kg
  • Power consumption: Approximately 9 Kw
  • Voltage: 220V/380V/440V
  • Frequency: 50Hz/60Hz
  • Motor: 3.7 Kw (5HP)
  • Maximum speed: 3000 rpm
  • Dimension (Vacuum): ø680(diameter) x 750 (H)
  • Vacuum pump motor: 2HP


  • A specifically designed impeller is installed at the bottom of the drive shaft and inside a circular cowling.
  • Maximum impeller mixing speed of 3500 rpm.
  • The machine is designed to be floor anchored and wall mounted, using a compressed air-driven cylinder.
  • Ensures a homogeneous blend.
  • Allows dispersing, mixing, homogenizing, and emulsifying while vacuum removes air within the product.
  • Takes up very little floor space.
  • The mixing head moves effortlessly up and down to the desired position when a gel transfer tank is moved into position.
